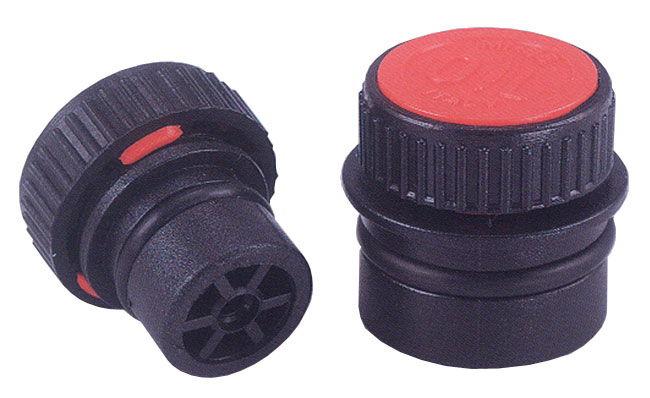

Low Profile Press-Fit Plug with Breather and Filter TPBSF-18

Low Profile Press-Fit Plug with Breather and Filter

Knurled low profile filler plug produced from Polyamide 66. Allowed maximum operating pressure: 100°C (212 F). Filler breather to be press-fit into predrilled hole in tanklid (see table F on the file available), with a hole tolerance of -0 + 0.1mm.

  • Oil resistant ‘O’ Ring 70 shore NBR.
  • The TPBSF series allow air passage at high through the vents located on the bottom of the head.
  • The series TPSBF includes a foam filter made from Polyurethane, filter rating: 50 Microns.
  • The above described low profile plugs and breathers are applied where overhead space is limited.
