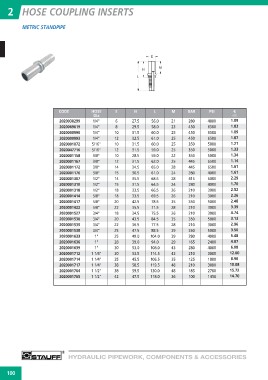

Page 106 - floMAX Catalogue 2016

2 HOSE COUPLING INSERTS

METRIC STANDPIPE

CODE HOSE E H L M BAR PSI €
Dia
2020038299 1/4" 6 27.5 56.0 21 280 4000 A02
2020069619 1/4" 8 29.5 58.0 23 450 6500
2020000990 1/4" 10 31.5 60.0 25 450 6500 1.09
2020000993 1/4" 12 32.5 61.0 25 450 6500 1.83
2020001072 5/16" 10 31.5 60.0 25 350 5000 1.09
2020047716 5/16" 12 31.5 59.0 25 350 5000 1.87
2020001158 3/8" 10 28.5 59.0 22 350 5000 1.21
2020001167 3/8" 12 31.5 62.0 25 445 6500 1.33
2020001172 3/8" 14 34.5 65.0 28 445 6500 1.34
2020001176 3/8" 15 30.5 61.0 24 280 4000 1.14
2020001307 1/2" 14 35.5 68.5 28 415 6000 1.61
2020001310 1/2" 15 31.5 64.5 24 280 4000 1.61
2020001318 1/2" 18 33.5 66.5 26 210 3000 2.29
2020001414 5/8" 18 33.5 69.5 26 210 3000 1.70
2020001417 5/8" 20 42.5 78.5 35 350 5000 2.52
2020001422 5/8" 22 35.5 71.5 28 210 3000 2.26
2020001527 3/4" 18 34.5 75.5 26 210 3000 2.48
2020001530 3/4" 20 43.5 84.5 35 350 5000 3.39
2020001535 3/4" 22 36.5 77.5 28 210 3000 4.74
2020001538 3/4" 25 47.5 88.5 39 350 5000 3.13
2020001633 1" 25 49.0 104.0 39 280 4000 2.96
2020001636 1" 28 39.0 94.0 29 165 2400 3.56
2020001639 1" 30 53.0 108.0 43 280 4000 5.48
2020001712 30 53.5 114.5 43 210 3000 4.87
2020001714 1 1/4" 35 45.5 106.5 35 125 1800 6.08
2020001717 1 1/4" 38 58.5 119.5 48 210 3000 12.00
2020001764 1 1/4" 38 59.5 130.0 48 185 2700 8.96
2020001765 1 1/2" 42 47.5 118.0 36 100 1450 10.08
1 1/2" 15.72
14.70

HYDRAULIC PIPEWORK, COMPONENTS & ACCESSORIES
100
