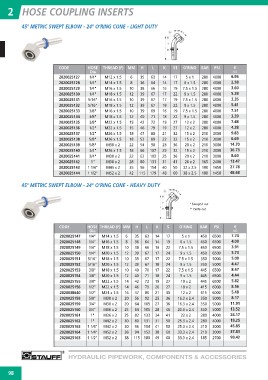

Page 104 - floMAX Catalogue 2016
P. 104
2 HOSE COUPLING INSERTS
45° METRIC SWEPT ELBOW - 24° O’RING CONE - LIGHT DUTY
CODE HOSE THREAD (F) MM H L K S1 O’RING BAR PSI €
Dia
2020025127 A02
2020025128 1/4" M12 x 1.5 6 35 63 14 17 5 x 1 280 4000
2020025129 6.96
2020025130 1/4" M14 x 1.5 8 36 64 14 17 6 x 1.5 280 4000 2.58
2020025131 3.60
2020025132 1/4" M16 x 1.5 10 38 66 16 19 7.5 x 1.5 280 4000 5.38
2020025133 3.35
2020025134 1/4" M18 x 1.5 12 39 67 17 22 9 x 1.5 280 4000 5.41
2020025135 7.51
2020025136 5/16" M16 x 1.5 10 39 67 17 19 7.5 x 1.5 280 4000 3.39
2020025137 7.48
2020025138 5/16" M18 x 1.5 12 39 67 18 22 9 x 1.5 280 4000 4.38
2020025139 9.83
2020025140 3/8" M16 x 1.5 10 39 69 16 19 7.5 x 1.5 280 4000 6.69
2020025141 14.70
2020025142 3/8" M18 x 1.5 12 40 71 18 22 9 x 1.5 280 4000 36.73
2020025143 8.60
2020025144 3/8" M22 x 1.5 15 42 72 19 27 12 x 2 280 4000 13.47
27.78
1/2" M22 x 1.5 15 46 79 19 27 12 x 2 280 4000 48.68
1/2" M26 x 1.5 18 47 80 21 32 15 x 2 210 3000
5/8" M26 x 1.5 18 53 89 22 32 15 x 2 210 3000
5/8" M30 x 2 22 54 90 23 36 20 x 2 210 3000
3/4" M26 x 1.5 18 66 107 29 32 15 x 2 210 3000
3/4" M30 x 2 22 62 103 25 36 20 x 2 210 3000
1" M36 x 2 28 80 131 31 41 26 x 2 165 2400
1 1/4" M45 x 2 35 96 154 40 50 32 x 2.5 100 1450
1 1/2" M52 x 2 42 115 179 48 60 38 x 2.5 100 1450
45° METRIC SWEPT ELBOW - 24° O’RING CONE - HEAVY DUTY
* Swaged nut
** Tieffe nut
CODE HOSE THREAD (F) MM H L K S O’RING BAR PSI €
Dia
2020025147 1/4" M14 x 1.5 6 35 63 14 17 5x1 450 6500 A02
2020025148 1/4" M16 x 1.5 8 36 64 14 19 6 x 1.5 450 6500
2020025149 1/4" M18 x 1.5 10 38 66 16 22 7.5 x 1.5 450 6500 7.74
2020025150 1/4" M20 x 1.5 12 39 67 17 24 9 x 1.5 450 6500 4.00
2020025151 5/16" M18 x 1.5 10 39 67 17 22 7.5 x 1.5 350 5000 3.91
2020025152 5/16" M20 x 1.5 12 39 67 18 24 9 x 1.5 350 5000 5.73
2020025153 3/8" M18 x 1.5 10 40 70 17 22 7.5 x 1.5 445 6500 5.00
2020025154 3/8" M20 x 1.5 12 40 71 18 24 9 x 1.5 445 6500 4.47
2020025155 3/8" M22 x 1.5 14 42 72 19 27 10 x 2 445 6500 8.47
2020025156 1/2" M22 x 1.5 14 46 79 20 27 10 x 2 415 6000 4.44
2020038640 1/2" M24 x 1.5 16 47 80 21 30 12 x 2 415 6000 5.82
2020025158 5/8" M30 x 2 20 56 92 25 36 16.3 x 2.4 350 5000 8.56
2020025159 3/4" M30 x 2 20 64 105 27 36 16.3 x 2.4 350 5000 5.48
2020025160 3/4" M36 x 2 25 64 105 28 46 20.3 x 2.4 350 5000 8.17
2020025161 1" M36 x 2 25 82 133 34 41 22 x 2 280 4000 11.91
2020025162 1" M42 x 2 30 80 131 31 50 25.3 x 2.4 280 4000 13.52
2020025163 41 50 25.3 x 2.4 210 3000 24.17
2020025164 1 1/4" M42 x 2 30 96 154 38 60 33.3 x 2.4 210 3000 19.25
2020025165 1 1/4" M52 x 2 38 94 152 49 60 33.3 x 2.4 185 2700 45.85
1 1/2" M52 x 2 38 115 180 37.81
99.42
HYDRAULIC PIPEWORK, COMPONENTS & ACCESSORIES
98
