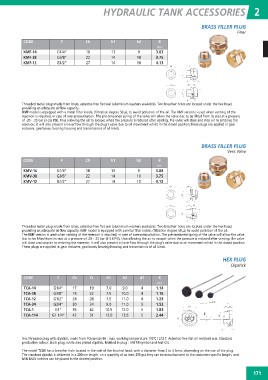

Page 177 - floMAX Catalogue 2016

HYDRAULIC TANK ACCESSORIES 2

BRASS FILLER PLUG

Filter

CODE F Ch h1 h2 €

N16

KMF-14 G1/4” 18 13 9 3.03

KMF-38 G3/8” 22 14 10 3.75

KMF-12 G1/2” 27 14 10 4.13

Threaded metal plugs made from brass, asbestos-free flat seal (aluminium washers available). Two breather holes are located under the hex head,
providing an adequate airflow capacity.
KMF model is equipped with a metal filter inside, (filtration degree 50 µ), to avoid pollution of the oil. The KMF version is used when venting of the
reservoir is required, in case of over-pressurisation. The pre-tensioned spring of the valve will allow the valve disc to be lifted from its seat at a pressure
of .20 - .25 bar (3-3.6 PSI), thus allowing the air to escape; when the pressure is reduced after venting, the valve will close and stop air to entering the
reservoir, it will also prevent oil overflow through the plug’s valve due to oil movement whilst in the closed position.These plugs are applied in gear
reducers, gearboxes, bearing housing and transmissions of all kinds.

BRASS FILLER PLUG

Vent Valve

CODE F Ch h1 h2 €

N16

KMV-14 G1/4” 18 13 9 3.03

KMV-38 G3/8” 22 14 10 3.75

KMV-12 G1/2” 27 14 10 4.13

Threaded metal plugs made from brass, asbestos-free flat seal (aluminium washers available). Two breather holes are located under the hex head,
providing an adequate airflow capacity. KMF model is equipped with a metal filter inside, (filtration degree 50 µ), to avoid pollution of the oil.
The KMF version is used when venting of the reservoir is required, in case of over-pressurisation. The pre-tensioned spring of the valve will allow the valve
disc to be lifted from its seat at a pressure of .20 - .25 bar (3-3.6 PSI), thus allowing the air to escape; when the pressure is reduced after venting, the valve
will close and stop air to entering the reservoir, it will also prevent oil overflow through the plug’s valve due to oil movement whilst in the closed position.
These plugs are applied in gear reducers, gearboxes, bearing housing and transmissions of all kinds.

HEX PLUG

Dipstick

CODE F Ch D h1 h2 d1 €

N16

TCA-14 G1/4” 17 19 7.0 9.0 4 1.14

TCA-38 G3/8” 18 22 7.5 10.0 4 1.16

TCA-12 G1/2” 24 28 7.5 11.0 4 1.23

TCA-34 G3/4” 30 34 9.0 11.0 5 1.52

TCA-1 G1” 35 42 10.5 12.0 5 1.83

TCA-114 G1 1/4” 42 51 12.0 13.5 5 2.44

Hex threaded plug with dipstick, made from Polyamide 66 : max. working temperature 100˚C / 212 F. Asbestos-free flat oil resistant seal. Standard
production colour: black plug, white zinc plated dipstick. Molded in plug : UNI fill symbol and text OIL.
The model TCAS has a breather hole located in the side of the knurled head, with a diameter from 2 to 3.5mm, depending on the size of the plug.
The standard dipstick is delivered in a 200mm length, on a quantity of at least 250 pcs they can be manufactured to the customers specific length, and
MIN-MAX notches can be placed in the desired position.
