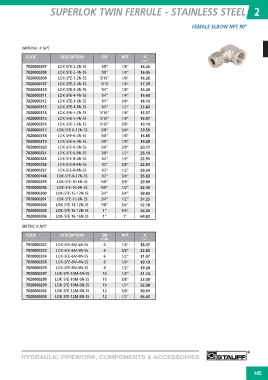

Page 151 - floMAX Catalogue 2016

SUPERLOK TWIN FERRULE - STAINLESS STEEL 2

FEMALE ELBOW NPT 90º

IMPERIAL X NPT

CODE DESCRIPTION OD NPT €

A07

7020000307 LOK-SFE-2-2N-SS 1/8” 1/8” 16.26

7020000308 LOK-SFE-2-4N-SS 1/8” 1/4” 16.45

7020000309 LOK-SFE-3-2N-SS 3/16” 1/8” 16.26

7020000147 LOK-SFE-3-4N-SS 3/16 1/4” 17.39

7020000310 LOK-SFE-4-2N-SS 1/4” 1/8” 16.26

7020000311 LOK-SFE-4-4N-SS 1/4” 1/4” 15.63

7020000312 LOK-SFE-4-6N-SS 1/4” 3/8” 18.72

7020000313 LOK-SFE-4-8N-SS 1/4” 1/2” 23.82

7020000314 LOK-SFE-5-2N-SS 5/16” 1/8” 15.57

7020000315 LOK-SFE-5-4N-SS 5/16” 1/4” 16.07

7020000316 LOK-SFE-5-6N-SS 5/16” 3/8” 19.10

7020000317 LOK-SFE-6-12N-SS 3/8” 3/4” 29.56

7020000318 LOK-SFE-6-2N-SS 3/8” 1/8” 16.86

7020000319 LOK-SFE-6-4N-SS 3/8” 1/4” 19.28

7020000320 LOK-SFE-6-6N-SS 3/8” 3/8” 20.17

7020000321 LOK-SFE-6-8N-SS 3/8” 1/2” 26.19

7020000325 LOK-SFE-8-4N-SS 1/2” 1/4” 22.91

7020000326 LOK-SFE-8-6N-SS 1/2” 3/8” 22.91

7020000327 LOK-SFE-8-8N-SS 1/2” 1/2” 29.34

7020000148 LOK-SFE-8-12N-SS 1/2” 3/4” 35.83

7020000295 LOK-SFE-10-6N-SS 5/8” 3/8” 29.90

7020000296 LOK-SFE-10-8N-SS 5/8” 1/2” 32.49

7020000300 LOK-SFE-12-12N-SS 3/4” 3/4” 39.83

7020000301 LOK-SFE-12-8N-SS 3/4” 1/2” 37.25

7020000304 LOK-SFE-14-12N-SS 7/8” 3/4” 52.18

7020000305 LOK-SFE-16-12N-SS 1” 3/4” 54.45

7020000306 LOK-SFE-16-16N-SS 1” 1” 64.82

METRIC X NPT DESCRIPTION OD NPT €
mm
CODE LOK-SFE-6M-4N-SS A07
LOK-SFE-6M-6N-SS 6
7020000322 LOK-SFE-6M-8N-SS 6 1/4” 18.47
7020000323 LOK-SFE-8M-4N-SS 6
7020000324 LOK-SFE-8M-8N-SS 8 3/8” 22.85
7020000328 LOK-SFE-10M-4N-SS 8
7020000329 LOK-SFE-10M-6N-SS 10 1/2” 31.07
7020000297 LOK-SFE-10M-8N-SS 10
7020000298 LOK-SFE-12M-6N-SS 10 1/4” 19.19
7020000299 LOK-SFE-12M-8N-SS 12
7020000302 12 1/2” 19.28
7020000303
1/4” 21.74

3/8” 23.00

1/2” 32.08

3/8” 30.91

1/2” 35.42

HYDRAULIC PIPEWORK, COMPONENTS & ACCESSORIES
